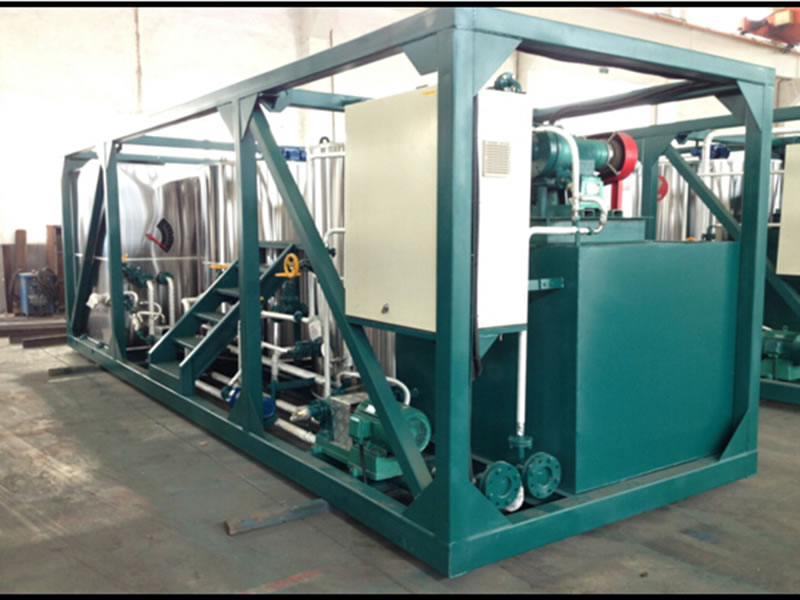

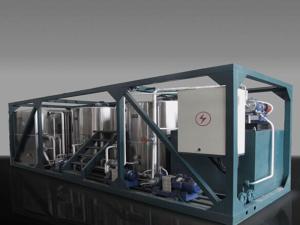

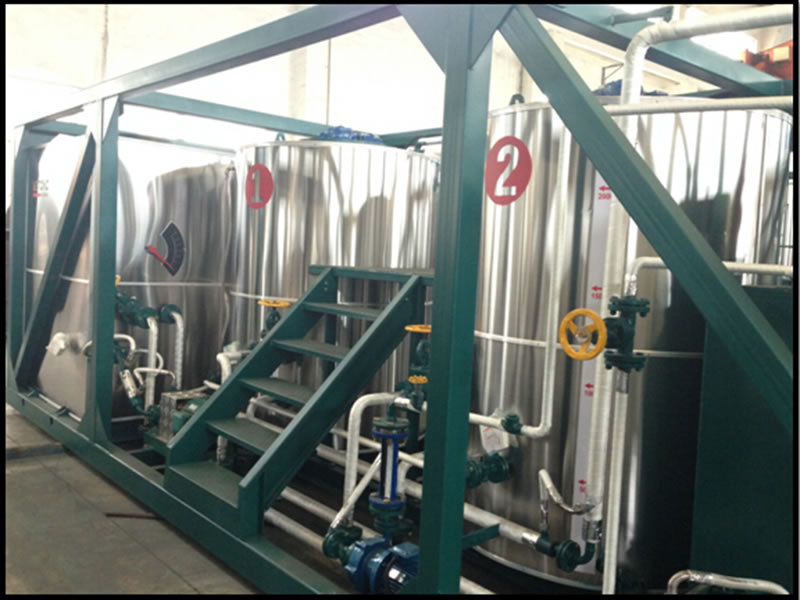

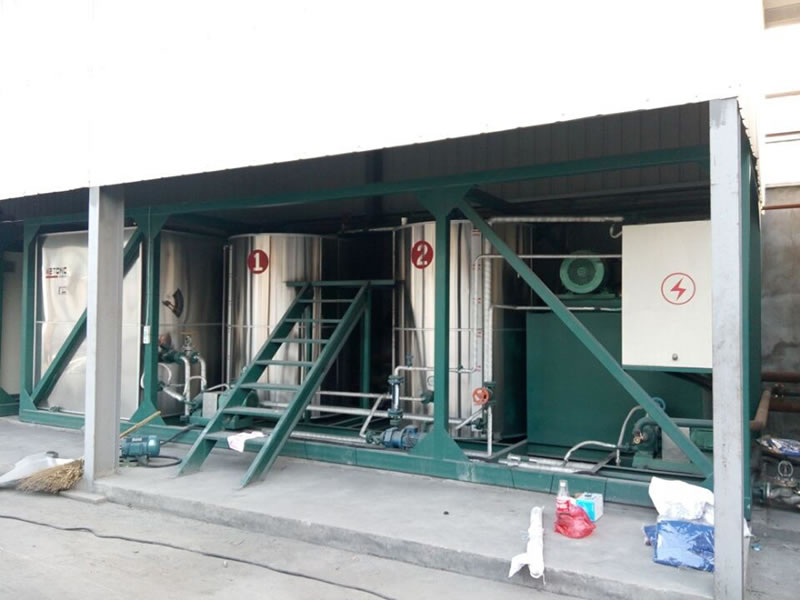

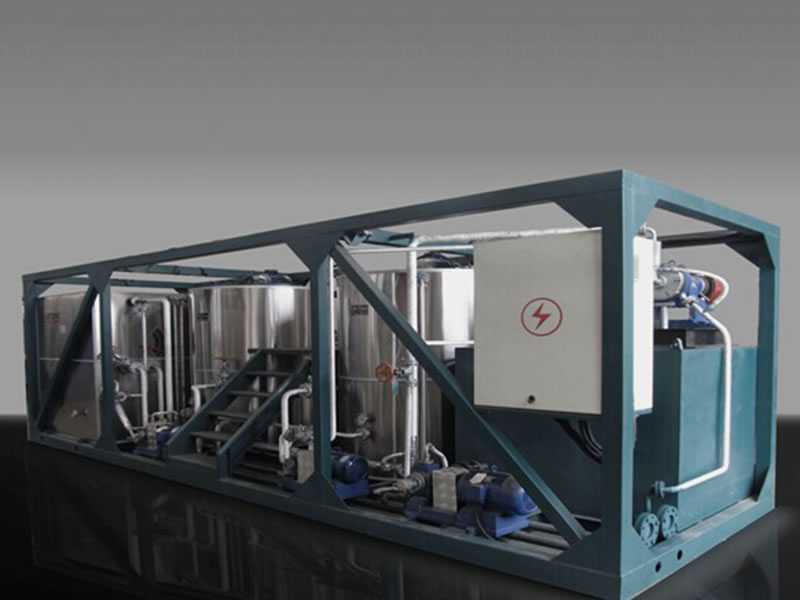

Emulsion Asphalt Plant
Features of Emulsion Asphalt Plant
1. Emulsifier solution technology products include tanks, piping and pipe, and are of high quality 304 stainless that provides absolute corrosion resistant.
2. Mixer tank and register tank coated with thin steel tank inside and with the additional companion of aluminum silicate preserve heat. It is wrapped by stainless steal and exquisite design.
3. Emulsification machine adopt modified emulsification machine which can manufacture modified emulsion asphalt and emulsion asphalt.
4. Basic asphalt pump and emulsion offering pump adopt frequency conversion speed with more convenient operating.

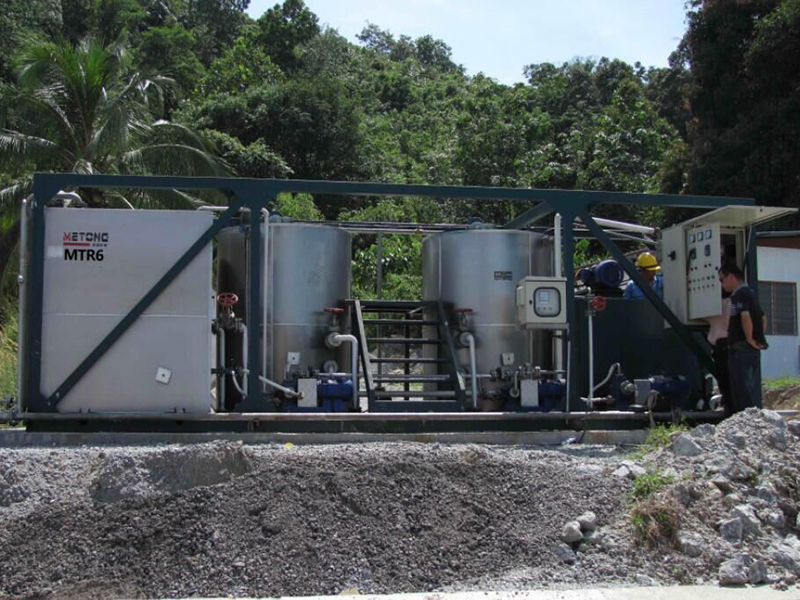

Strength of Mtr6 Emulsion Asphalt Plant
1. Easy installation
2. Fast installation
3. Rapid transportation
4. Accurate measurement
5. Simple operation and control
Performance of Emulsion Asphalt Plant
1. It has large touch screen, human interface, convenient for operating, and adopts high grade PLC control safety and reliable
2. Emulsion Asphalt Plant features super corrosion prevention
3. All fillings are international advanced technical products
4. Pneumatic valve adopt Shanghai fluorine-lining valve, Messenger return machine adopt Italy coil
5. Asphalt pump, finished pump adopt Qingtian Screw pump
6. lotion pump adopts famous brand special pump
7. Emulsifier tank and latex tank adopt high quality stainless steel 304
8. Mix tank and register adopt plastic inside steel tank
9. Soap delivery installation adopts fluorine-lining steel pipe
10. Heat recycle installation adopts stainless steel removable plate heat exchanger of Chinese famous brand with high efficiency and convenient maintenance.
| Model | MTR6 | |
| Productivity | 6T/H | |
| Emulsion Bitumen Mote Diameter | < 0.2mm | |
| Emulsion Bitumen Content | >65% | |
| Dimension(L×W×H)m | 7×2.2 ×2.31 | |
| Emulsifier Water Liquor Tank Diameter(φ)×H(mm) | ||
| Asphalt Gear Pump | Model | 40 Type |
| Generator | 4 KW | |
| Flux | 6T/H | |
| Emulsifier Water Liquor Gear Pump | Model | 40 Type |
| Generator | 4 KW | |
| Flux | 3T/H | |
| Colloid Milling | Model | MTR6 |
| Generator | 15 KW | |
| Flux | 3-6 Club meter | |
| Heating Conducting Oil Circulate Pump | Model | 50 Type |
| Generator | 5.5 KW | |
| Flux | 2'' | |
| Conducting Oil Inlet Pump | Model | 25 Type |
| Generator | 3 KW | |
| Flux | 1'' | |
We are one of the major emulsion Asphalt Plant manufacturer and supplier in China. We have received certification of ISO9001 quality management system. In addition to emulsion Asphalt Plant, we also provide Slurry Seal /Micro-surfacing Paver , Chip Sealing Distributors and Equipment, asphalt distributor, hot mix asphalt transport truck and rubber Asphalt Plant. All of them are made of superb raw material, and feature reasonable structure, convenient operation, durability, reliable quality and reasonable prices. As a result, our emulsion Asphalt Plant and other road equipment are widely used in more than forty countries and regions, such as Russia, Indonesia, Kenya and Chile. If you purchase, we will serve you with OEM. We are looking forward to working you!
-
-

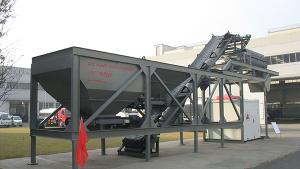

- Cold In-plant Recycling EquipmentThis technology can not only improve the performance and prolong the service life of asphalt pavement, but also can yield significant savings in materials, thus reducing the project cost.
-
-
-

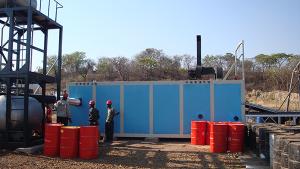

- Asphalt Melting EquipmentThis equipment was specially designed to melt drummed asphalt. We have different design and capacity 2t/h to 8t/h meet project requirement. It is mainly composed of Main Body, Hot Oil Heater, Asphalt Pump and Filtering System, bitumen storage tanker.
-
-
-

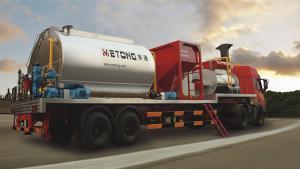

- Mobile Rubber Asphalt PlantUsing waste tire rubber powder and rubber bitumen as pavement material can not only effectively extend the service life of the bituminous pavement but also reduce the environmental pollution caused by waste tires.
-
-
-

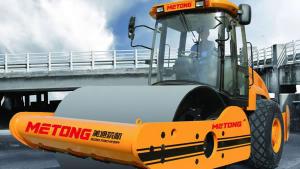

- Single Drum Vibratory Rollers (Full Hydraulic Single Drive Road Roller)The single drum vibratory rollers we produce are full hydraulic single drive road rollers adopting SAUER driving and vibration systems to guarantee reliable performance.
-
