Brief Introduction

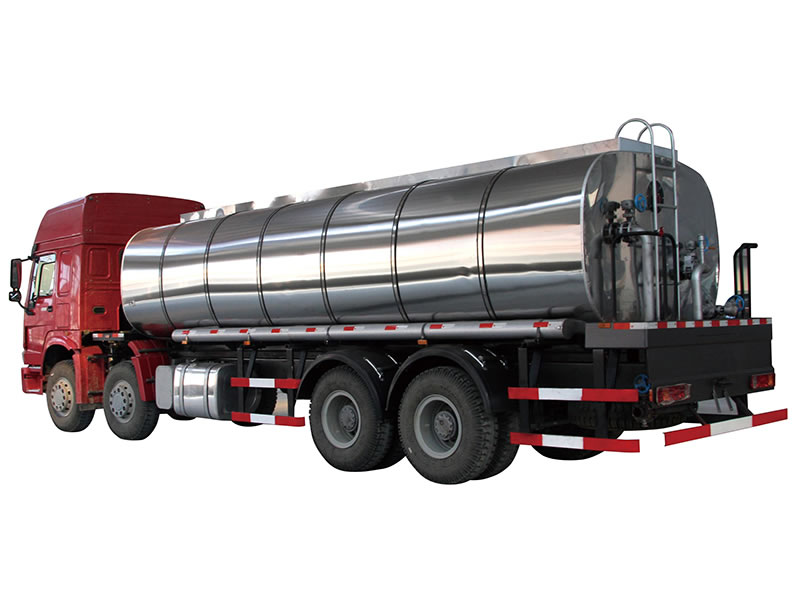

LMT5312GLQW bitumen transportation truck is a high-tech product newly
developed by our company based on the needs for transporting large volume of
asphalt and the lessons learned from similar products. This tank is
equipped with bitumen transportation truck and high-power burner to realize the long
distance transport of all types of asphalt with large capacity. The asphalt
transport tank adopts unique heat preservation maintenance structure and is made
of high effective thermal insulation materials.
All the working devices including the asphalt pump are driven by the hydraulic system with safe and reliable performance. LMT5312GLQW bitumen transportation truck features easy operation, fast operation speed and high levels of S&T content and is an ideal tool for asphalt transportation.
ParameterModel | LMT5312GLQW |
Overall Dimension (L/W/H mm) | 11700×2496×3563 |
Tank Capacity (m3) | 15.5 |
Chassis Model | ZZ1317N4667C |
Tire Specification | 12.00-20 |
Approach /Departure Angle | 16°/15° |
Engine Rating/Rotation Speed (kw/r/min) | 247/2200 |
Fuel Type | Diesel |
Seating Capacity (including the driver) | 2 |
Top Speed (km/h) | 90 |
Complete Vehicle Weight (kg) | 16550 |
Rated Load (kg) | 14320 |
Max. Flow of Asphalt Pump (L/min) | 450 |
Max. Pressure of Hydraulic System (MPa) | 20 |
Construction Case

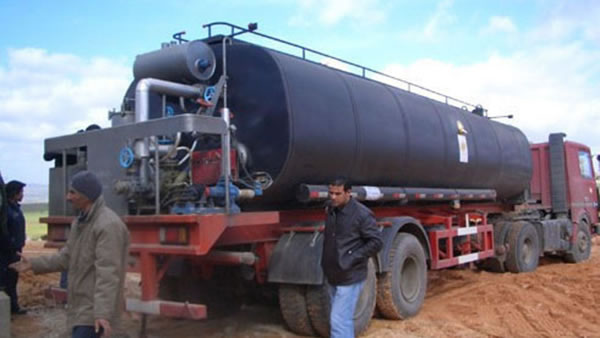

Metong's asphalt transport tank trailer in Angola
