• KS122S
• KS182S
• KS205S
• KS225S
• KS255S

KS122S

Inquiry Form

Main Parameters of KS122S Full Hydraulic Single Drum Vibratory Roller

Item	Unit	Parameter
Operating mass	kg	12000
Static linear load	N/cm	310
Vibration amplitude	mm	1.85/0.83
Vibration frequency	Hz	30/34
Centrifugal force	kN	280/162
Speed range	km/h	0-10
Gradeability	%	38
Turning radius	mm	6000
Drum width	mm	2130
Drum diameter	mm	1533
Minimum ground clearance	mm	486
Engine model	-	DEUTZ
Rated power	kW	92
Fuel tank capacity	L	230
Steering angle	-	±35°
Swing angle	-	±12°
Overall dimension (L×W×H)	mm	6150×2310×3200

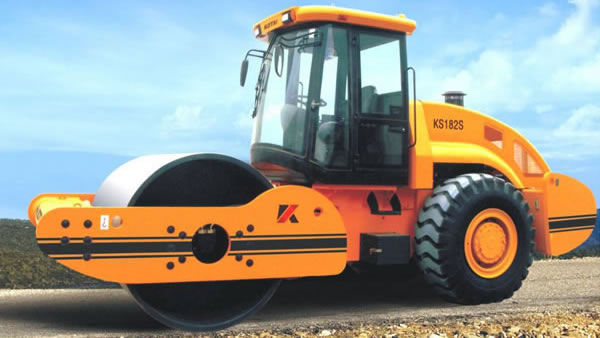

KS182S

Inquiry Form

Main Parameters of KS182S Full Hydraulic Single Drum Vibratory Roller

Item	Unit	Parameter
Operating mass	kg	18000
Static linear load	N/cm	418
Vibration amplitude	mm	1.9/0.9
Vibration frequency	Hz	28/34
Centrifugal force	kN	350/245
Speed range	km/h	0-9
Gradeability	%	40
Turning radius	mm	6000
Drum width	mm	2110
Drum diameter	mm	1550
Minimum ground clearance	mm	486
Engine model	-	DEUTZ
Rated power	kW	125
Fuel tank capacity	L	280
Steering angle	-	±35°
Swing angle	-	±12°
Overall dimension (L×W×H)	mm	6370×2310×3200

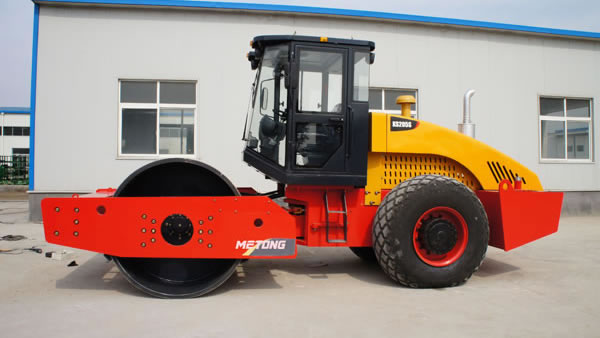

KS205S

Inquiry Form

Main Parameters of KS205S Full Hydraulic Single Drum Vibratory Roller

Item	Unit	Parameter
Operating mass	kg	20000
Static linear load	N/cm	456
Vibration amplitude	mm	1.98/0.99
Vibration frequency	Hz	28/32
Centrifugal force	kN	365/255
Speed range	km/h	0-9
Gradeability	%	30
Turning radius	mm	6500
Drum width	mm	2150
Drum diameter	mm	1550
Minimum ground clearance	mm	486
Engine model	-	SDEC
Rated power	kW	140
Fuel tank capacity	L	280
Steering angle	-	±35°
Swing angle	-	±12°
Overall dimension (L×W×H)	mm	6300×2330×3050

KS225S

Inquiry Form

Main Parameters of KS225S Full Hydraulic Single Drum Vibratory Roller

Item	Unit	Parameter
Operating mass	kg	22000
Static linear load	N/cm	501
Vibration amplitude	mm	1.98/0.99
Vibration frequency	Hz	28/32
Centrifugal force	kN	395/265
Speed range	km/h	0-9
Gradeability	%	35
Turning radius	mm	6500
Drum width	mm	2150
Drum diameter	mm	1550
Minimum ground clearance	mm	486
Engine model	-	SDEC
Rated power	kW	140
Fuel tank capacity	L	280
Steering angle	-	±32°
Swing angle	-	±12°
Overall dimension (L×W×H)	mm	6300×2330×3050

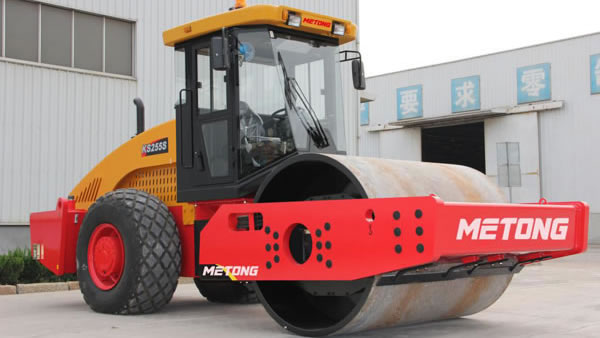

KS255S

Inquiry Form

Main Parameters of KS255S Full Hydraulic Single Drum Vibratory Roller

Item	Unit	Parameter
Operating mass	kg	25000
Static linear load	N/cm	570
Vibration amplitude	mm	1.98/0.99
Vibration frequency	Hz	28/32
Centrifugal force	kN	405/275
Speed range	km/h	0-8.5
Gradeability	%	35
Turning radius	mm	7000
Drum width	mm	2150
Drum diameter	mm	1550
Minimum ground clearance	mm	486
Engine model	-	SDEC
Rated power	kW	147
Fuel tank capacity	L	300
Steering angle	-	±32°
Swing angle	-	±12°
Overall dimension (L×W×H)	mm	6400×2390×3100

Features
1. The single drum vibratory rollers we produce are full hydraulic single drive road rollers adopting SAUER driving and vibration systems to guarantee reliable performance.
2. Full hydraulic transmission and electrical-hydraulic control enhance the automation of this heavy vehicle.
3. Thanks to the mono-lever control system and CVT adjustment system, our single drum vibratory roller is easy to operate.
4. The single drum road roller is designed with a full hydraulic articulated steering system and a maintenance-free battery cell.
5. Double-frequency and double-amplitude vibration make for excellent compaction effects.
6. The braking system of this single drum vibratory roller has an automatic power shutting off device to ensure the equipment's safety and reliability.
7. The imported vibratory bearings used in our road compaction equipment are of good quality and the electric plug connectors we use are moisture proof, salt spray proof and fungus proof.
8. Its streamlined styling and upturning engine hood make our road construction vehicle more attractive.

Remark: Due to continual improvement of technologies, the technical parameters are subject to change without prior notice.

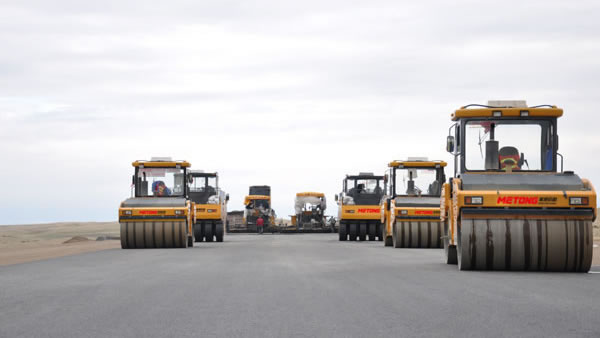

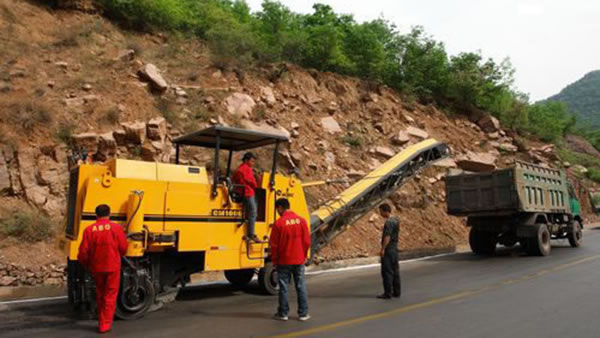

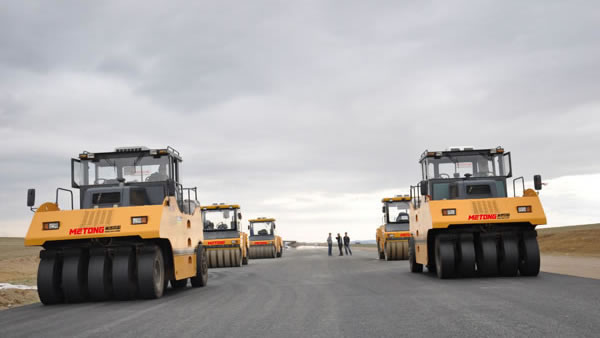

Pictures of Construction Cases
