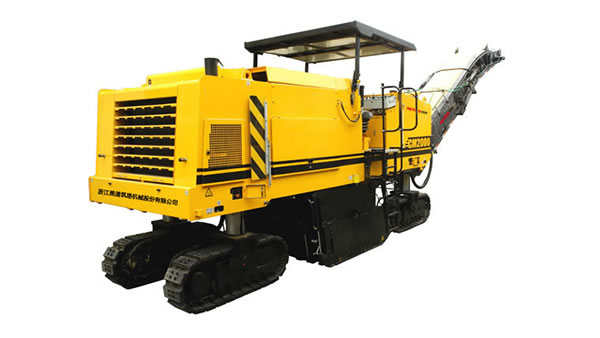

Cold Milling Machine
Our cold milling machine is mainly used for the repair, maintenance or reconstruction of high grade highway, airport pavement and roads in other places. After more than 10 years' development, this road construction machinery has obvious advantages in control performance, driving performance, maintenance performance, working reliability and other aspects.
Features
1. The milling drum of our cold milling machine manufactured with special technology is equipped with 100 milling tools and is able to work flexibly and stably. Its maximum milling depth can be 300mm.
2. The water tank is designed in a unique styling, making the entire road milling equipment look elegant.
3. This road maintenance equipment has complete protection systems to ensure the safety of the workers and the machine unit.
4. Famous foreign brand hydraulic and control components are used in the cold milling machine to guarantee excellent working reliability.
5. Automatic control system and user-friendly operation system reduce the working intensity of the operators.
| Milling machine model | CM2000 | CM1001J | CM1001 |
| Engine model | QSX15-C600 | SC8D220G2B1 | 6CTA8.3-C215 |
| Engine rated power/speed | 448/2100kW/rpm | 162/2200kW/ rpm | 160/2200kW/rpm |
| Milling width | 2000mm | 1000mm | 1100mm |
| Milling depth | 0~320mm | 0~300mm | 0~150mm |
| Milling tool quantity | 169pcs | 100pcs | 9pcs |
| Milling diameter | Φ1060mm | Φ940mm | Φ750mm |
| Milling blade tool blade pitch | 15m | 12mm | 15mm |
| Revolving speed of milling device | 100r/min | 120r/min | 105r/m |
| Minimal ground clearance | 386mm | 145mm | 140mm |
| Traveling speed | 0-5.4km/h | 0~6.4km/h | 0-6.4km/h |
| Operating speed | 0-30mm/min | 0~32m/min | 0-35m/min |
| Theoretical gradeability | 60% | 35% | 30% |
| Theoretical material conveying capacity | 290m3/h | 105m3/h | 150m3/h |
| Water tank capacity | 3000L | 1000L | 980L |
| Fuel tank capacity | 1100L | 400L | 260L |
| Hydraulic oil tank capacity | 100L | ||
| Travel drive mode | Full hydraulic | Full hydraulic | Full hydraulic |
| Operating voltage | 24V | 24 V | 24V |
| Operating weight | 32000kg | 15000kg | 14400kg |
| Transportation dimension | 12000×3000×2170mm | 12360×2330×2700mm | 10470×2270×2780mm |

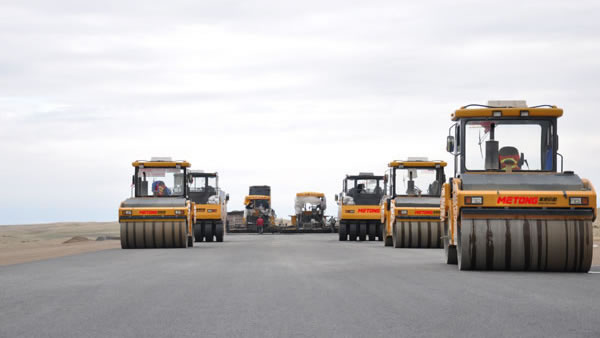

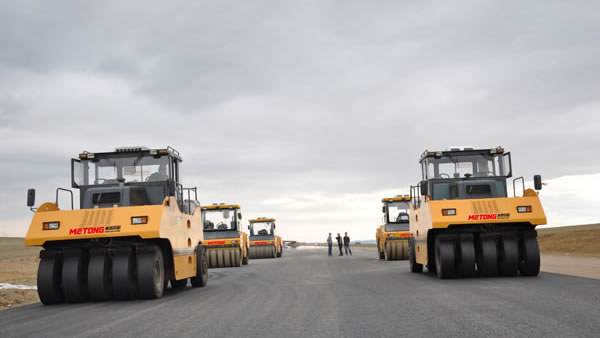

Pictures of Construction Cases
-
-

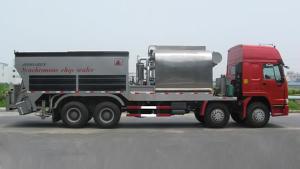

- LMT5311TFC Chip Sealing Distributors and EquipmentSynchronous Chip Sealing Distributors and Equipment is developed by Metong in accordance to international standards. It is widely used in road constructions. It can spray asphalt and aggregate simultaneously and as well spray separately.
-
-
-

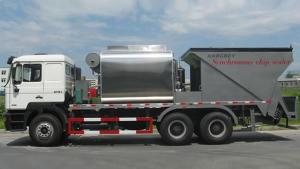

- LMT5250TFC Synchronous Chip Sealing Distributors and EquipmentLMT5250TFC synchronous Chip Sealing Distributors and Equipment developed by our company is the special machinery for asphalt pavement construction and can be widely applied into the highway operation work of fast synchronous spraying.
-
-
-

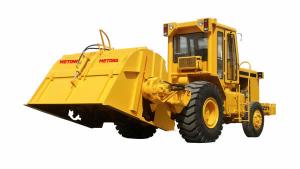

- Soil Stabilizer (Model WBZ21)The WBZ21 soil stabilizer is a piece of dedicated road construction equipment we developed. It is mainly used to mix the foundation materials on the spot in the construction of roads, airports, urban buildings, etc.
-
-
-

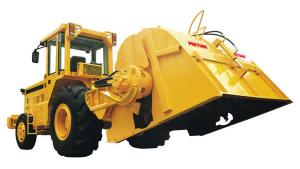

- Soil Stabilizer ( Model WB400 with Special Mixing Drum)This dual-purpose soil stabilizer can be used not only for mixing the foundation materials in road construction but also for crushing stones or breaking old asphalt pavements.
-
