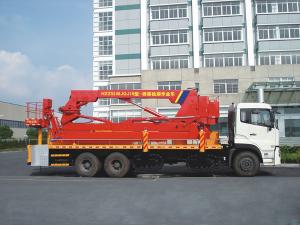

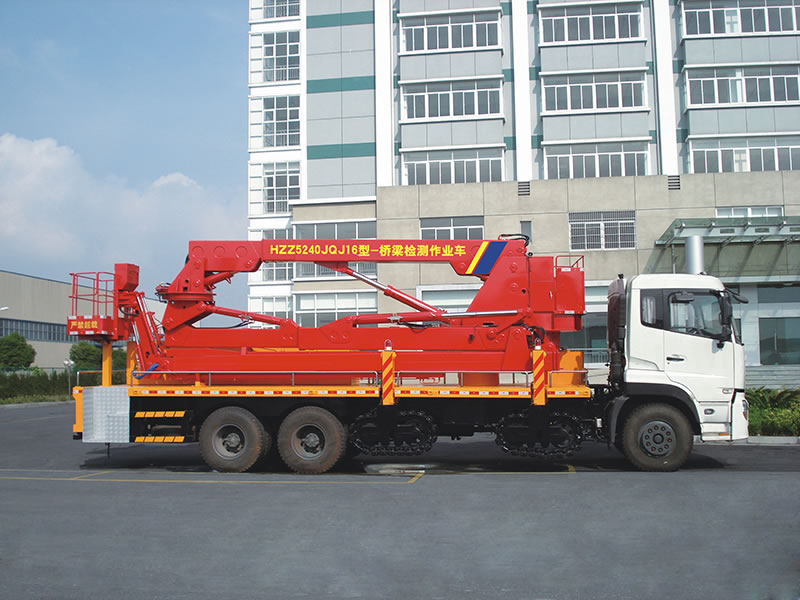

Bridge Inspection Vehicle (Bucket Type)

Main description:

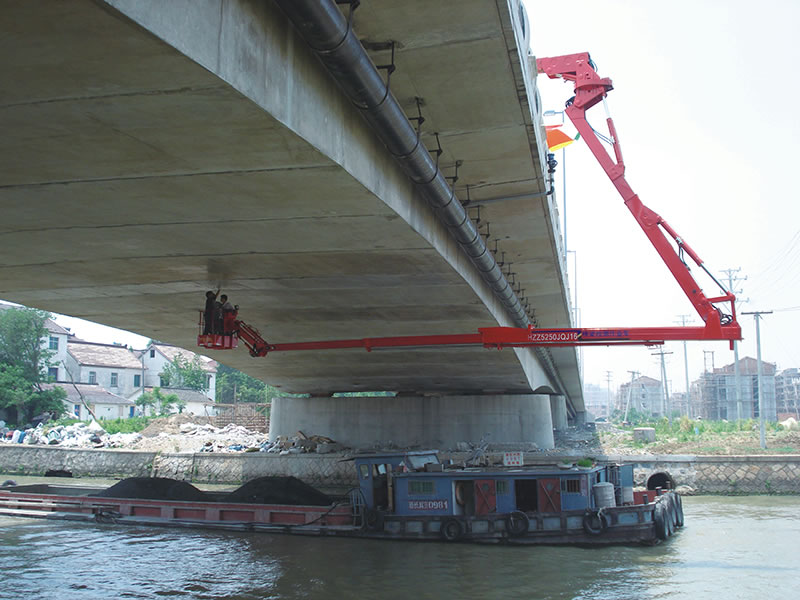

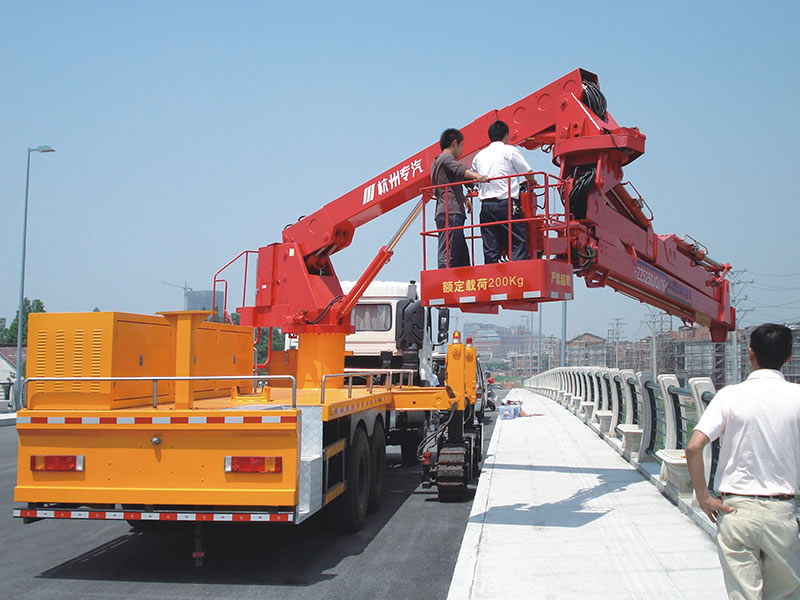

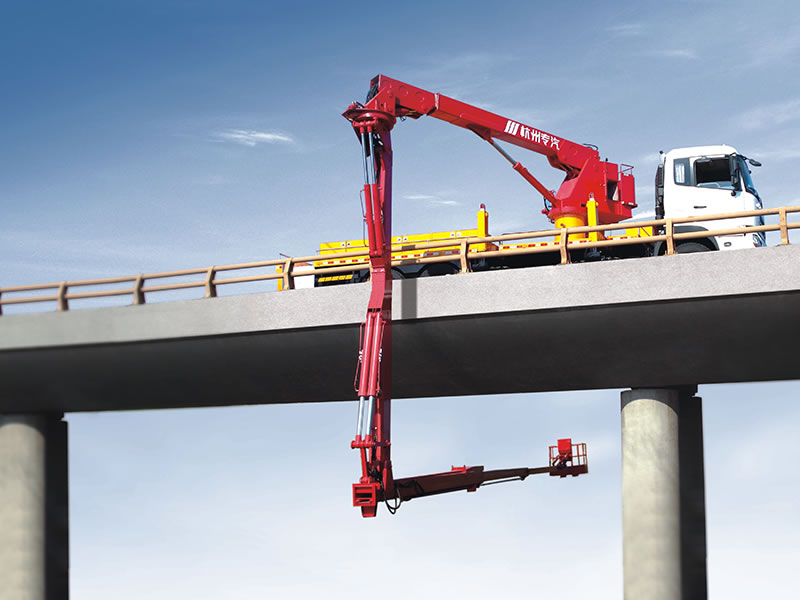

Bridge Inspection Vehicle(Bucket type-HZZ5250JQJ16) is the latest operating vehicle which independently developed by our company, it has nice exterior, compact structure, easy operation, safe and reliable features. It can safely and efficiently send staff and testing equipment to any location which the bridge magnitude allowed, in the meanwhile complete the work in the shortest time. It also meet the testing requirements for most different bridges.

Main specification for bridge Inspection unit:
Type Bucket type
Max. horizontal range 16.4M
Max. lowering depth 23.3M
Space required on bridge 2900mm
Max. overbridging of sidewalk 4500mm
Max. crossing of sound barrier 3250mm
The first scope of rotation 0-90°
The second scope of rotation 0-180°
Max. working height 13M
Max. load on platform 300KG
G.V.W 25000KG
Overall dimension 11250(L)×2500(W)×3930(H)mm
